ENFORCER SERIES
ID mount pipe beveling tools for pipe weld preparation

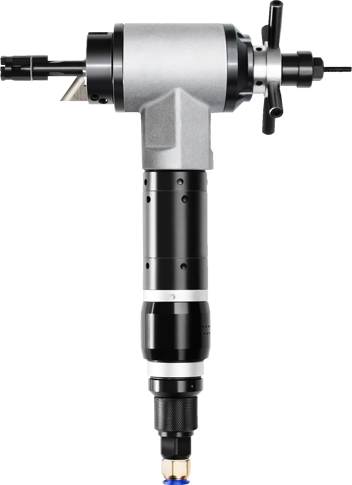

Magnatech LLC’s exclusive Enforcer Series are portable ID mount beveling tools for pipe weld preparation. Five models can bevel, face and counterbore pipe simultaneously from 20mm to 355.6 mm (3/4in to 14in). Each model comes in a lightweight, compact design with pneumatic and electric drive options. Each cutting tool bit is made from M42 tool steel to ensure longevity and precise preps. Combining rugged construction with simple operation, Magnatech LLC’s Enforcer Series will improve your company’s productivity.
Download/View PDF Request Quote
Enforcer in action
ENFORCER SERIES
- Self-centering mandrel assures precise end prep
- Each tool equipped with mandrel legs for the complete tool size range
- Safe cold-cutting process can be used where arc/flame cutting would be hazardous
- Fast set-up and prep
- Eliminates creation of a Heat Affected Zone (HAZ) on sensitive pipe alloys
- Unobstructed view of machining operation
- Simultaneous beveling, facing and counter bore
- Form tooling eliminates the need for operator machining skills
- Lightweight aluminum housing for easy mounting and portability
- Fully enclosed drive gears and bearings for long life
ENFORCER SERIES
| MODEL | mm | Inch | Motor Power | Rotation Speed | Weight | Motor Power | Rotation Speed | Weight |
| E1 | 26.7-33.4 | 1.050-1.315 | 1 HP | 66 RPM | 7 kg (15 lbs) | 850W | 48 RPM | 8 kg (17.6 lbs) |
| E3 | 42.2-88.9 | 1.660-3.500 | 1 HP | 66 RPM | 8.5 kg (19 lbs) | 850W | 48 RPM | 9 kg (20 lbs) |
| E6 | 88.9-168.3 | 3.500-6.625 | 1 HP | 61 RPM | 16 kg (35 lbs) | 1000W | 38 RPM | 17 kg (37 lbs) |
| E8 | 88.9-219.1 | 3.500-8.625 | 1.5 HP | 50 RPM | 26 kg (57 lbs) | |||
| E14 | 219.1-356.6 | 8.625-14.000 | 1.5 HP | 14 RPM | 46 kg (101 lbs) | |||
